From pre-Hispanic mysticism to 5-axis perfection

The challenge began with a simple yet ambitious question: How does HERMLE welcome a new generation of technology to Mexico with something that has soul?

HERMLE decided to create a demo piece that truly represented the Mexican culture. Together with EMUGE-FRANKEN and hyperMILL, the Quetzalcoatl project was launched: a fusion of design, programming, manufacturing, and culture.

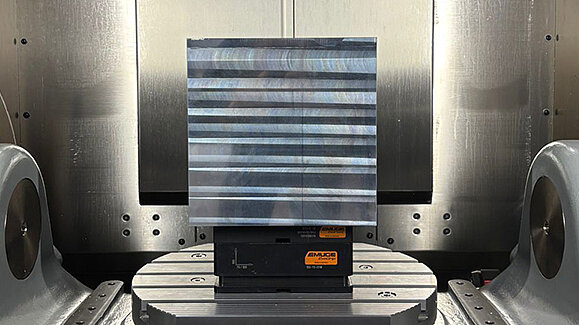

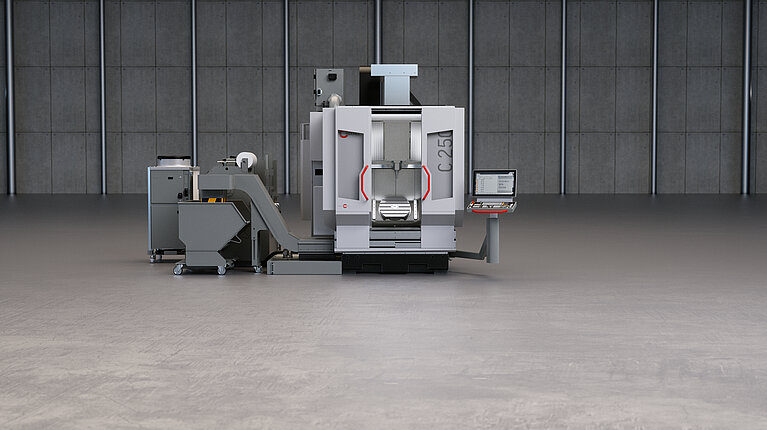

The applications team celebrated the arrival of this new generation by inaugurating the HERMLE C 250 GEN2 with a precise choreography of strategy and motion, transforming a 250 mm block of Aluminum 6061 into a symbolic ritual — a welcome to the innovations preparing us for the challenges of tomorrow.

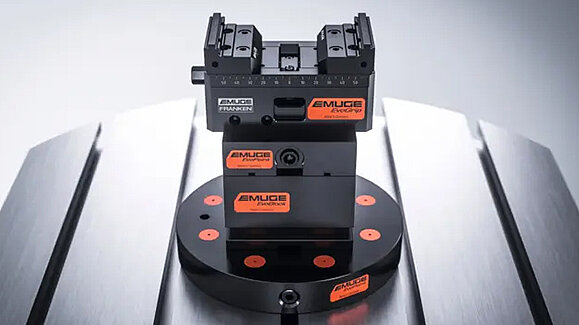

The EMUGE-FRANKEN Evo Grip clamping system and tool line were used — a perfect combination to leverage hyperMILL’s optimized roughing strategies and fully test the capabilities of the Heidenhain TNC7 control. The result was a fluid flow of chips and a stable, robust, and efficient machining process. After 39 tool changes, the part stood out for its surface finish and intricate textures.

The Process

• Roughing:

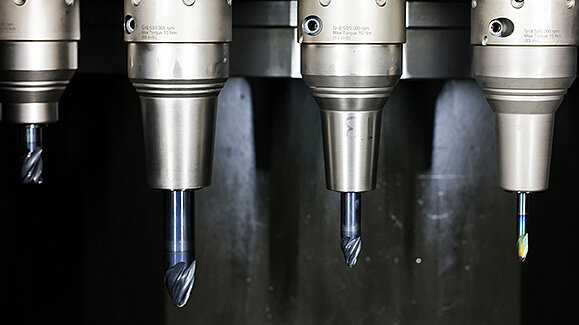

  Ø50 mm and Ø25 mm indexable insert cutters were used for aggressive material removal, taking full advantage of the dynamic performance of the C 250.

• Finishing:

  Quetzalcoatl was sculpted using ball nose cutters, reaching diameters as small as Ø1 mm to define the facial features and feather textures.

• Strategy:

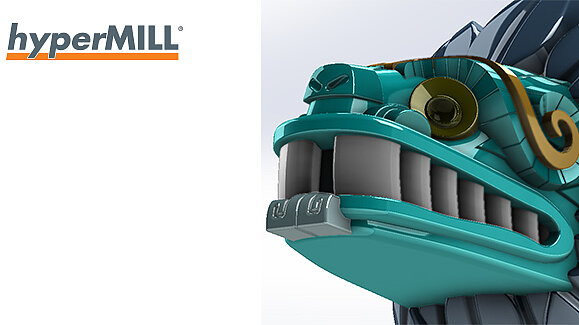

  With hyperMILL and its Virtual Machine simulation, simultaneous 5-axis toolpaths were achieved, allowing tools to reach complex angles and inclinations that would otherwise be impossible.

15 Hours of Transformation

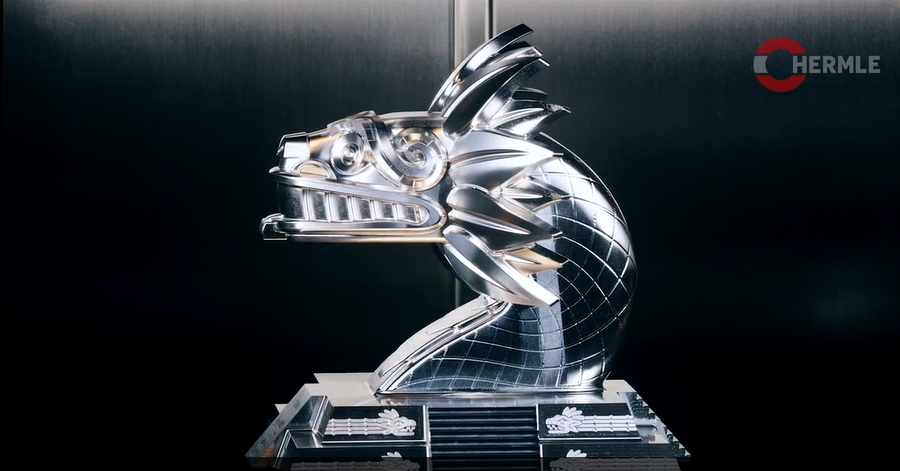

After a 15-hour machining cycle, the solid block was transformed into a showcase piece that became the highlight of Expo Manufactura 2026. The process demonstrated not only the speed and power of the 16,000 RPM spindle, but also the confidence — as described by the engineering team — that every part will come out perfect, time and time again.

Quetzalcoatl is not just a technical demo; it is proof of what happens when next-generation German engineering meets the pride and talent of Mexican engineering.
